A Practical Guide to Concrete Surface Profiles (CSP) for Contractors

If you’re asking “What concrete surface do I need?” before installing a coating, overlay, or repair, you’re already ahead of the game. The answer depends on one key factor: the Concrete Surface

Profile (CSP).

A properly prepared surface is the foundation for a long-lasting floor. The right CSP makes sure your coatings, overlays, or sealers bond properly — preventing failures like peeling, delamination, or early wear.

In this guide, we’ll explain:

✅ What a concrete surface profile is
✅ Which CSP you need for your specific project
✅ How to achieve it using the right surface prep methods
✅ How to measure your finished profile so you know you’ve got it right

Understanding Concrete Surface Profiles (CSP)

The International Concrete Repair Institute (ICRI) defines CSPs on a scale from 1 (almost smooth) to 10 (very rough).

• CSP 1–2: Smooth to lightly textured — typical for thin coatings
• CSP 3–5: Medium profile — great for thicker coatings or micro-toppings
• CSP 6–9: Heavy profiles — for bonded overlays or screeds
• CSP 10: Extremely rough — for structural overlays needing maximum grip

When someone asks “What concrete surface do I need?” it really comes down to the system you’re installing:

• Thin sealers or paints (4–5 mils): CSP 1–3
• Epoxy or resin coatings (5–50 mils): CSP 1–5
• Polymer overlays (1/8”–1/4”): CSP 5–7
• Toppings thicker than 1/2”: CSP 8–10

Best Methods for Getting the CSP You Need

Different jobs need different tools. Here’s a quick look at what works best:

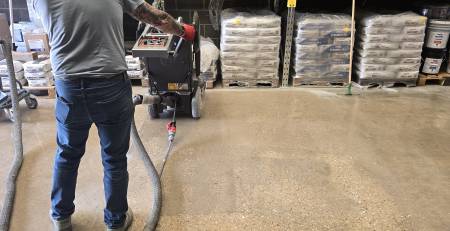

Grinding
Ideal for CSP 1–2. Removes laitance and contaminants, leaving a smooth or lightly textured finish. Best for thin coatings and polished finishes. Zero risk of micro-cracking.

Abrasive Blasting
Highly versatile, covering CSP 2–7. Works on horizontal, vertical, and overhead surfaces. Great for cleaning and roughening without damaging sound concrete.

Shot-Blasting
Perfect for horizontal surfaces needing CSP 3–7. Faster than open blasting for large areas, good for removing coatings and prepping for thicker overlays.

Scabbling
Maximum impact — CSP 7–10. Used for demolition, heavy profiling, or where you need deep mechanical keying. Be cautious: these can cause micro-cracking.

How to Check Your CSP

Once you prep the surface, check it against ICRI’s rubber comparator chips or run a pull-off test to confirm you’ve hit the right profile. If the coating fails before the concrete breaks, your prep is solid.

Final Tip: Plan It Right

When someone asks “What concrete surface do I need?” the best answer is: Start with the end in mind. Know your coating or overlay system, choose the right prep method, and test your surface before you commit.

Need help picking the right tools or prep method for your job? We’re here to help — reach out anytime for advice, demo days, or to see the results in action.
